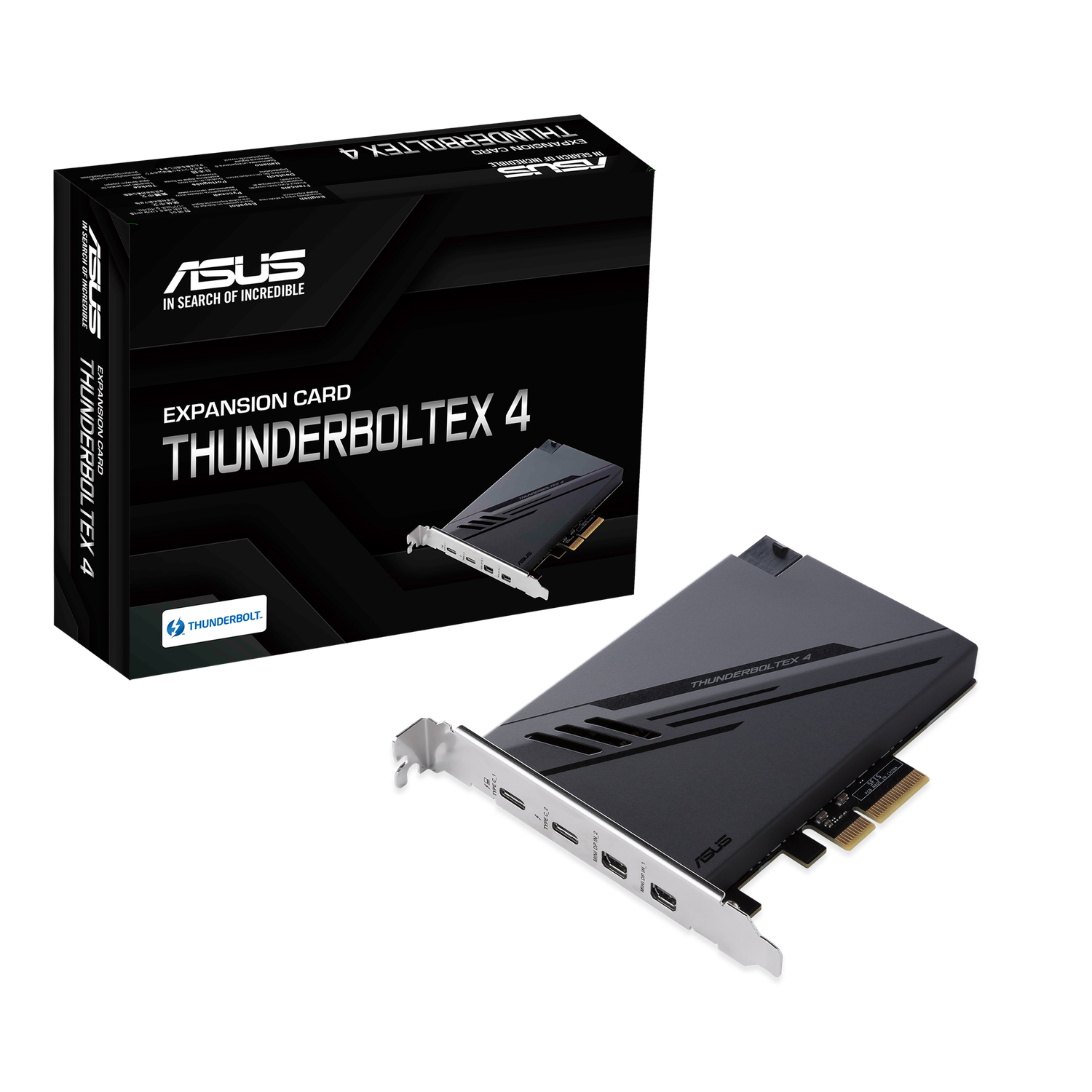

ASUS THUNDERBOLTEX 4 Expansion Card, Dual Thunderbolt, 40 Gbps Bi-Directional, 4xUSB-C, 1xDP, 4xPCIE3.0

ASUS ThunderboltEX 4 expansion card, dual ThunderboltÔäó 4 (USBÔÇæC?«) ports, DisplayPortÔäó 1.4, PCIe?« 3.0 x4 interface Intel?«-certified ThunderboltÔäó 4 add-on card 40 Gbps bi-directional bandwidth for superfast data transfers and video output Dual ThunderboltÔäó 4 ports (USB-C?«), with support for up to five Thunderbolt devices in a daisy chain DisplayPortÔäó 1.4 for 8K Ultra HD support Supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C?« charging for laptops. Chipset Intel?« ThunderboltÔäó 4 JHL8540 Controller External Connectors 2 x USB Type-C?« ports (Support ThunderboltÔäó 4 and USB 4 technology) - up to 40Gbps for Thunderbolt devices - The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature. 2 x mini DisplayPort IN ports 1 x 6-pin PCIe power connector for quick charge function 1 x USB 2.0 header 1 x Thunderbolt header Interface PCIe 3.0 x4 interface VGA Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz* * Max resolution support will depend on your VGA source Accessories 2 x mini DisplayPort cables (links graphics output from motherboardÔÇÖs or discrete graphics cardÔÇÖs DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card) 1 x USB 2.0 cable 1 x 14-1 pin Thunderbolt header cable 1 x User manual 1 x Support DVD with ThunderboltÔäó driver Compatible Models ASUS Intel 500 series and later models with 14-1 pin Thunderbolt header. *Refer to the following link for an up-to-date list of compatible models: https://www.asus.com/Motherboard-Accessories/ThunderboltEX-4/HelpDesk_Manual/ Operating System Windows?« 10 - 64 bit
