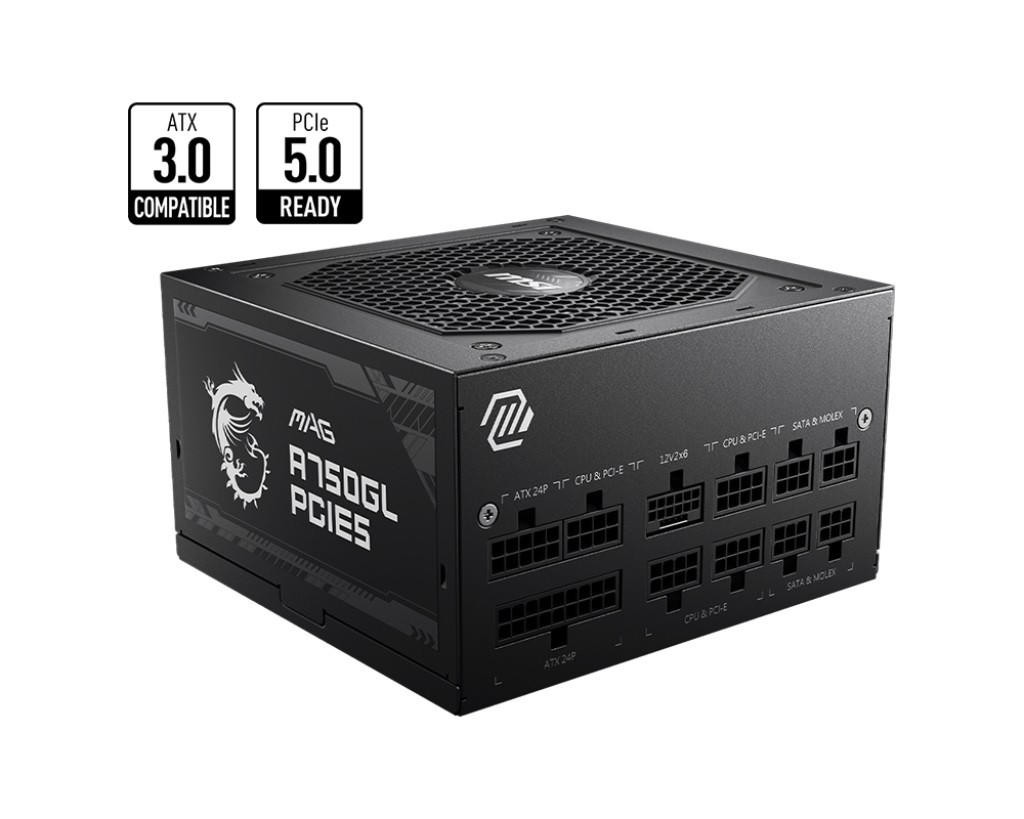

MSI Magenta A750GL PCIE5 750W Up to 90% (80 Plus Gold) ATX Power Supply Unit

MSI MAG A750GL PCIE5 750W Up to 90% (80 Plus Gold) ATX Power Supply Unit FEATURES: MSI MPG A750GF The MPG gaming power supply can support the NVIDIA GeForce RTX„¢ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply€™s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards. Supports the NVIDIA GeForce RTX„¢ 30 Series GPUs Full modular cable design Flat cable equipment 10-year warranty 80 Plus Gold certified for high efficiency 100% all Japanese 105oC capacitor Active PFC design Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP LLC Half Bridge Topology with DC-DC module design SPECIFICATIONS: EFFICIENCY RATING 80 PLUS Gold (up to 90%) MODULAR Yes (full modular) FAN SIZE 120 mm FAN BEARING Fluid Dynamic Bearing DIMENSIONS (DXWXH) 140 x 150 x 86 mm PFC TYPE Active PFC INPUT VOLTAGE RANGE 100~240 VAC POWER WATT 750W POWER EXCURSION 1500W (*up to 200% of the PSU's rated power for 100μs) INPUT FREQUENCY RANGE 47-63Hz PROTECTION OCP / OVP / OPP / OTP / SCP / UVP ATX (24 PIN) 1 EPS (4+4 PIN) 2 PCI-E 5.0 (16 PIN) 1 (450W) PCI-E (6+2 PIN) 3 SATA (15 PIN) 8 MOLEX (4 PIN) 4 FDD (4 PIN) 1
