TP-LINK

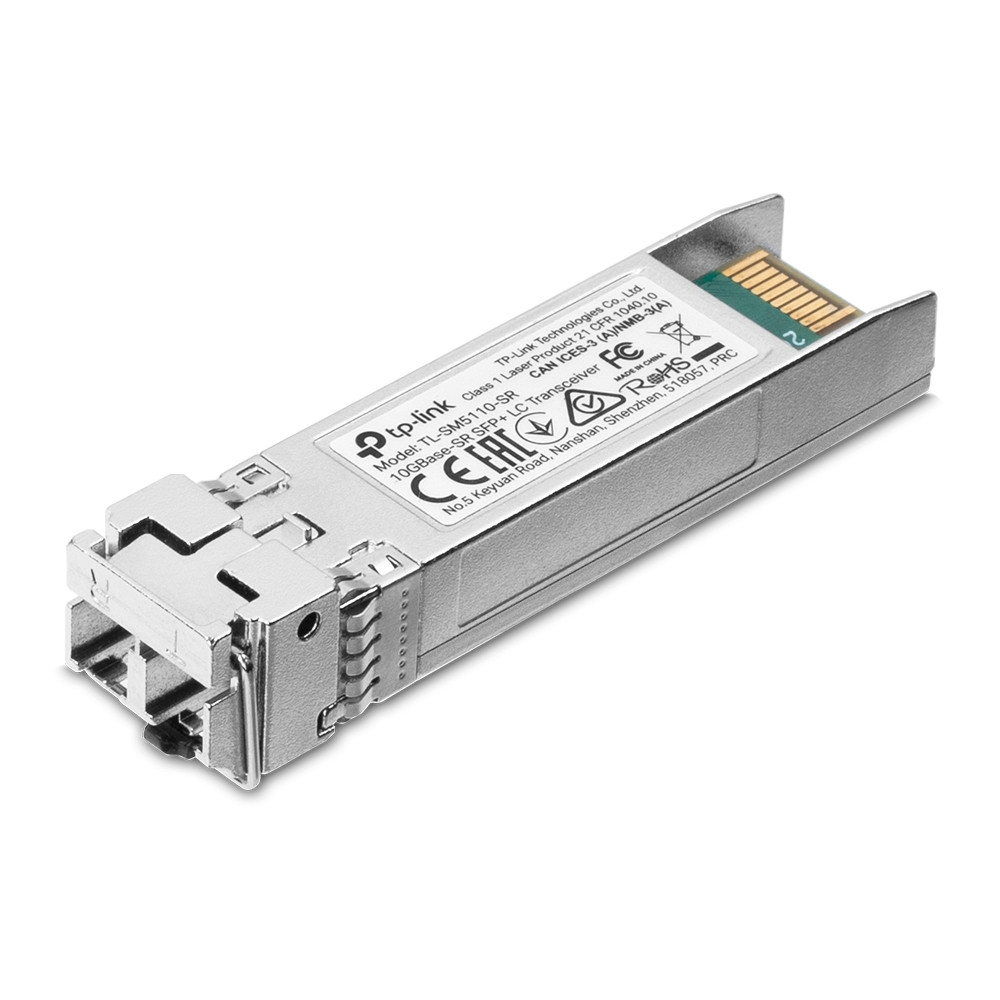

TP-LINK TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP+ MSA Compatible
- SKU:
- L-NWTL-SM5110-SR
- UPC:
- 6935364006297
- Weight:
- 0.10 KGS
- Shipping:
- Calculated at Checkout
Payment options available:
Share with:
Description
TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP+ LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP+ MSA Compatible Multi-mode SFP+ LC Transceiver Hot-Pluggable with maximum flexibility Supports Digital Diagnostic Monitoring (DDM) Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. What This Product Does The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively. HARDWARE FEATURES DDM Yes SFP-MSA Yes Hot Swappable Yes TRANSCEIVER Standards and Protocols IEEE 802.3ae, TCP/IP, SFF-8472 Wave Length 850nm Power Supply 3.3V Fiber Type 50/125um or 62.5/125um Multi-mode Max. Cable Length 300m (OM3) Data Rate 10Gbps Port Type LC/UPC Safety & Emission FCC, CE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
